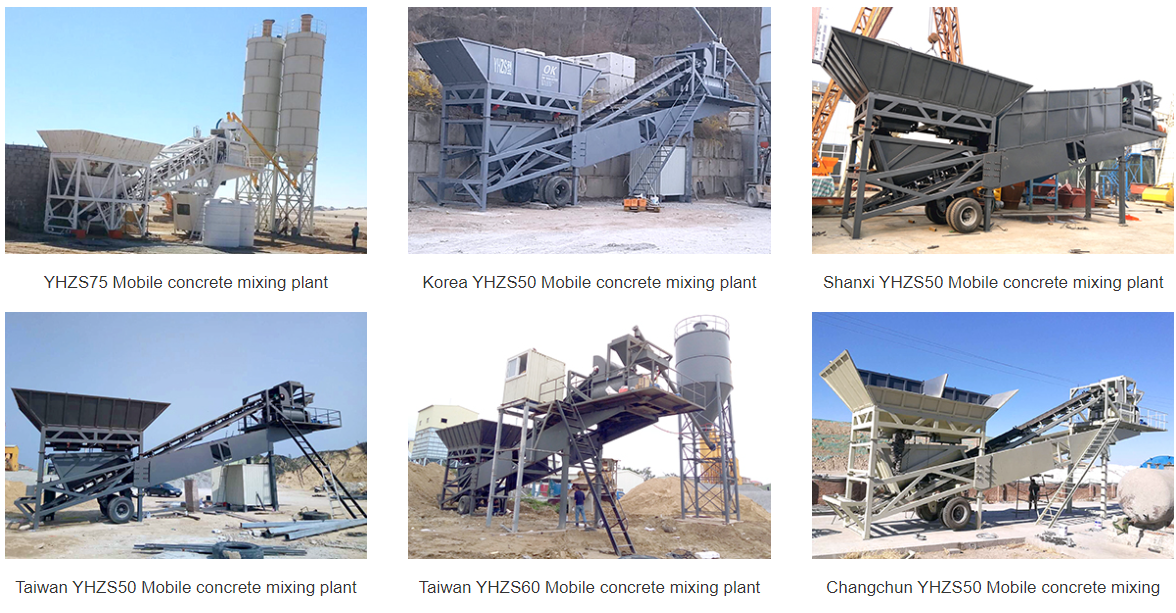

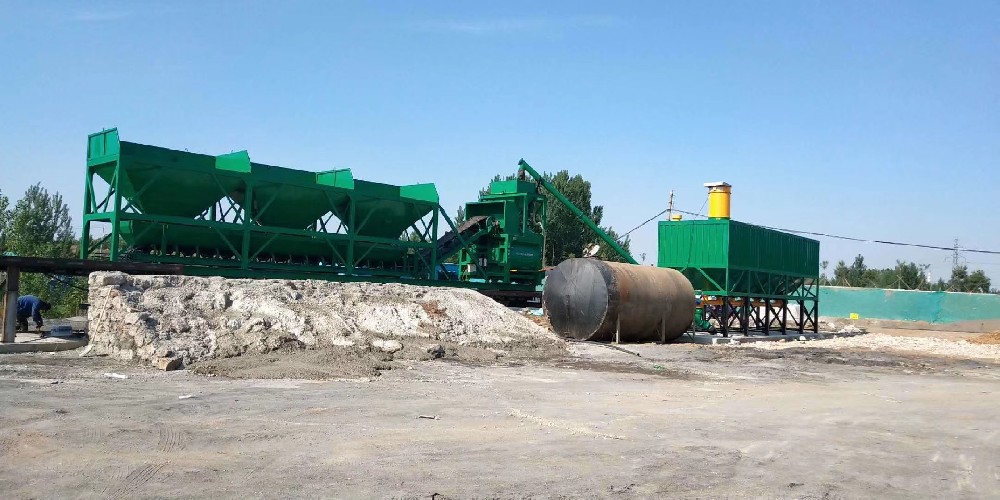

YHZS75 mobile concrete mixing station is mainly used for mixing and building high-grade highways, urban roads, airport runways and other paving concrete, roadbed concrete, roller compacted concrete, precast concrete, and commercial concrete for mixing construction. The whole set of equipme
YHZS75 mobile concrete mixing station is mainly used for mixing and building high-grade highways, urban roads, airport runways and other paving concrete, roadbed concrete, roller compacted concrete, precast concrete, and commercial concrete for mixing construction. The whole set of equipment is compact, and the process of feeding, weighing, stirring and other processes of concrete production is centralized on a trailer unit; the man-machine interface is simple and clear, the work is stable and reliable, and it is applicable to various harsh environments; the whole machine design meets the environmental protection requirements , excellent mobile performance; the use of double-shaft forced mixer, continuous work ability, stirring evenly and quickly, suitable for multi-line long-term concrete construction requirements.
The machine is controlled by computer, which can be operated automatically or manually. The operation is simple and easy to master. The dynamic panel display can clearly understand the operation of each component, and can store and print report data, which provides great convenience for production scheduling management.
project | Theoretical productivity | Mixer | Batching machine | Conveyer capacity of belt conveyer | Drag speed | Wheelbase (lateral) | Turning radius | Total power | Unloading height |
YHZS75 | 75m³/h | JS1500 | PLD2400 | 400 | 15 | 3400 | 15 | 90 | 4.0 |
1, fast disassembly, easy to move except for the equipment such as screw conveyor, cement warehouse, mixing station all the wiring does not need to be removed, only 30 tons of crane cooperation, one day can be removed and shifted. When installing, if the ground is smooth and solid, no foundation is required, the production can be in place on the same day, which is very suitable for units with tight construction requirements. The station is equipped with tires and traction pins, allowing a maximum speed of 60 km/h when towed by a trailer. The total weight of all equipment in the mixing station is 23.5 tons, and all accessories are removed with the station at one time when the station is moved.
2, good mixing performance using the forced double horizontal shaft mixer, you can use the shortest mixing time to achieve uniform mixing. For dry hard, semi-dry hard, plastic and various proportions of concrete can complete good mixing.
3, the configuration of high-grade, high reliability, accurate measurement, easy to operate stirring host reducer, metering sensors, and the main electrical components of the control system are imported components, not only greatly reduce the failure rate of the equipment, but also improve the measurement accuracy of the equipment.
