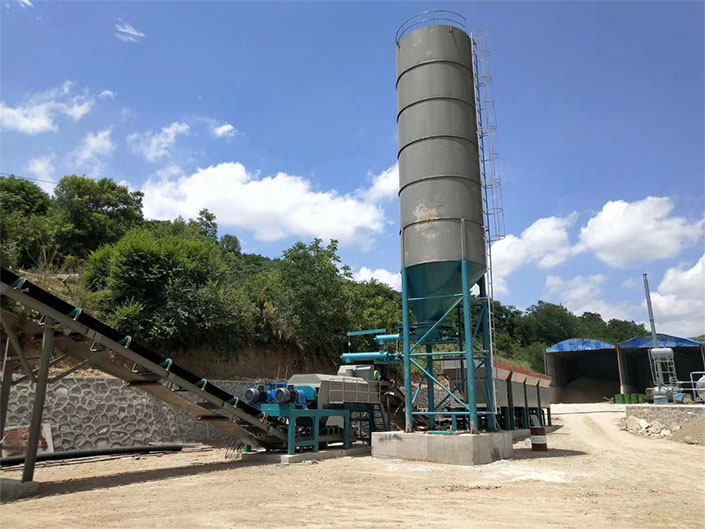

WBZ500 Stabilized Soil Mixing Plant

　　1, the equipment can mix cement stabilized soil, lime stabilized soil, sandstabilized soil and other basic stable materials.

　　2, the equipment is suitable for high-grade highway, airport, railway,municipal construction, the production of a variety of different specificationsof stable soil base materials.

　　3, the use of no liner plate double horizontal shaft forced mixing host, so that the material in the "boiling" state of rapid advancement, high productivity, uniform mixing production process continuous stability, and no need to replace the liner, long service life, low maintenance costs.

　　4, single motor drive reducer, big gear synchronous transmission, stable and reliable work, shock vibration resistance, strong anti-overload ability, long service life.

　　5, the unique form of water supply, to ensure that the water supply is uniform, stable and effective, water mist can effectively reduce dust pollution, effectively remove stable soil agglomeration.

　　6, the special powder big mouth screw feeder to avoid the previous impeller feeder moisture easily blocked phenomenon, so that the dust measurement is more reliable, stable, uniform and continuous, can effectively reduce the waste of powder and scrap finished materials, stable material cost control.

　　7, a variety of powder supply forms can be selected: manual unpacking cement or bulk cement can be used, or bucket elevator.

　　8, the use of computer speed regulation or frequency conversion electronic speed regulation, the material supply is uniform and continuous and reliable, strong anti-interference ability, accurate ratio, simple operation.

　　9, the system has: shutdown, boot process management and status detection function, fault alarm and overload alarm and undervoltage protection function, manual, semi-automatic, automatic various forms of operation, can store ratio, output and other data, and can output and print statistical reports. It provides strong support for site management, scheduling and monitoring.

　　10, finished silo door can be single open, double open, easy to use. The volume is 6, 8, 10m³ There are three to choose from.

　　11, fully sealed, with air conditioning control room, improve the operator's comfort, reduce the intensity of operation labor.
